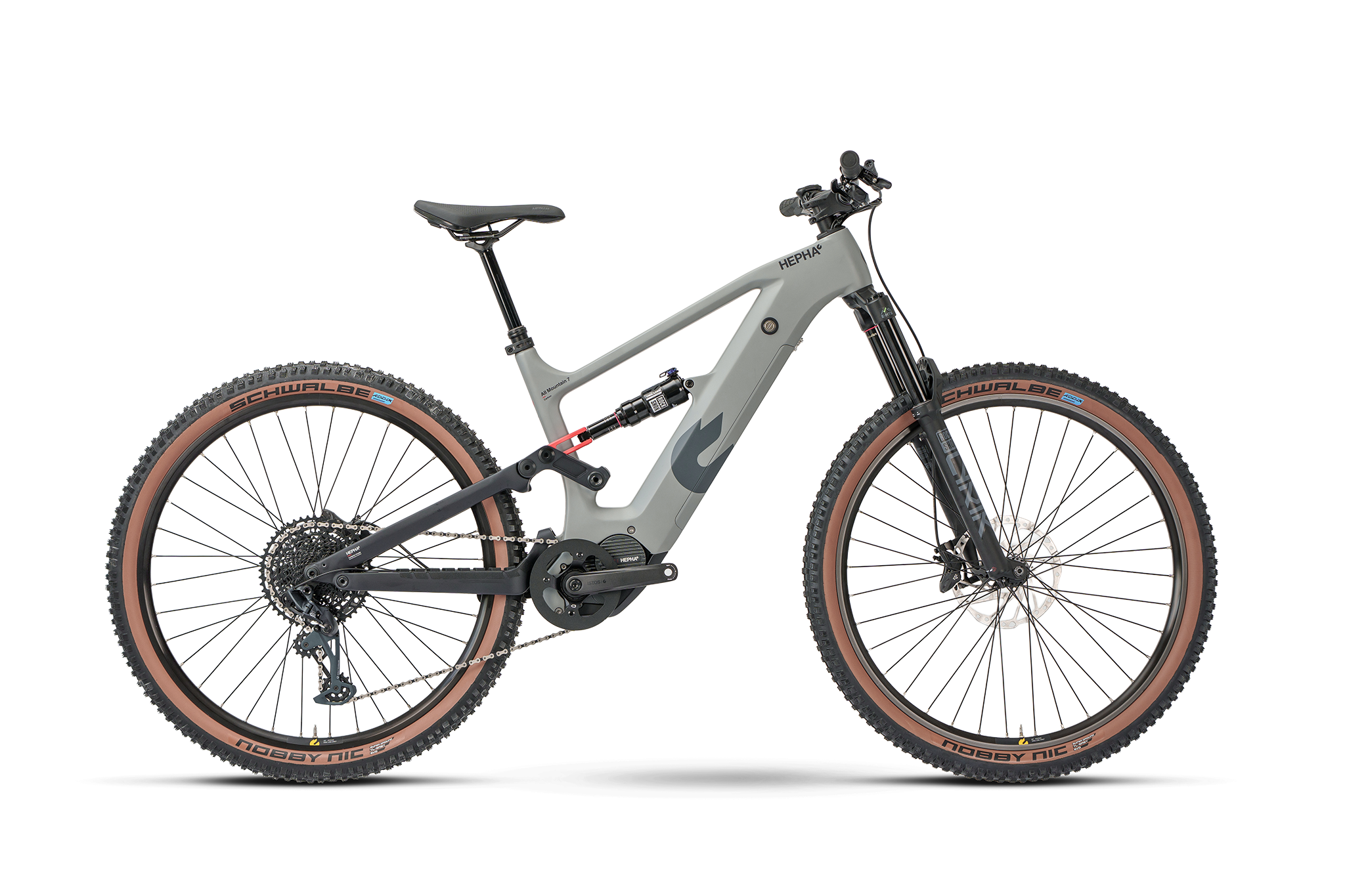

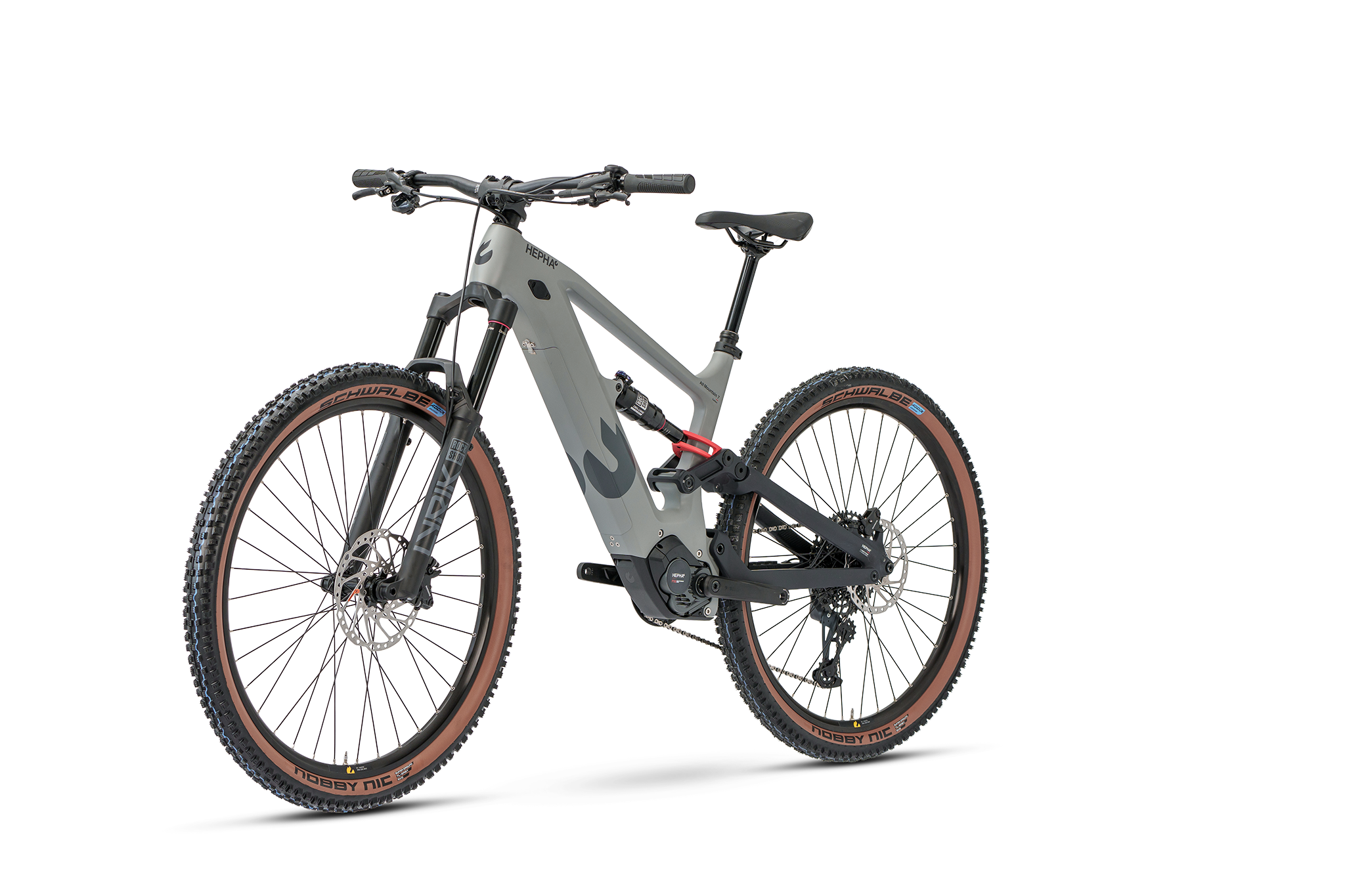

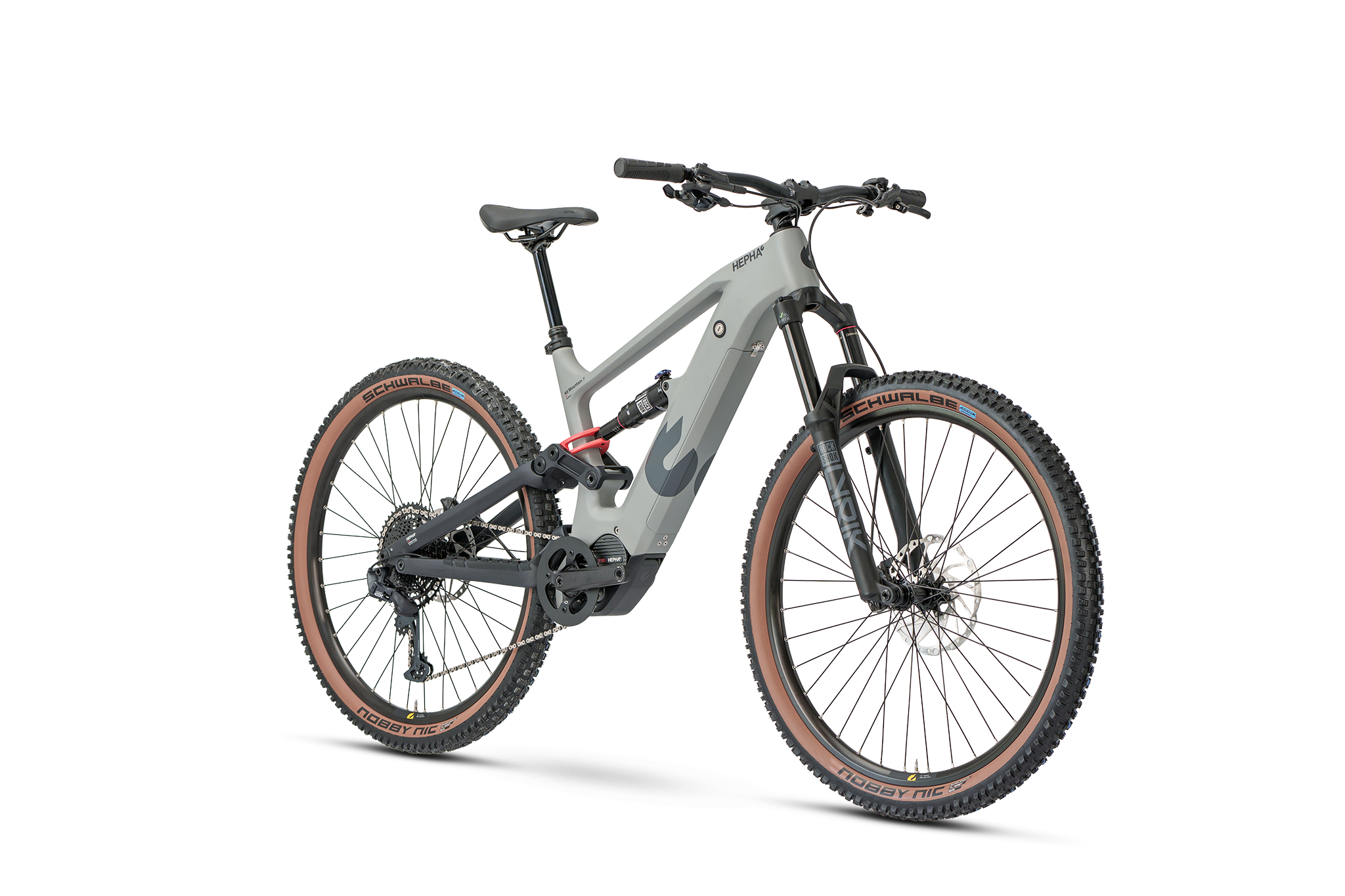

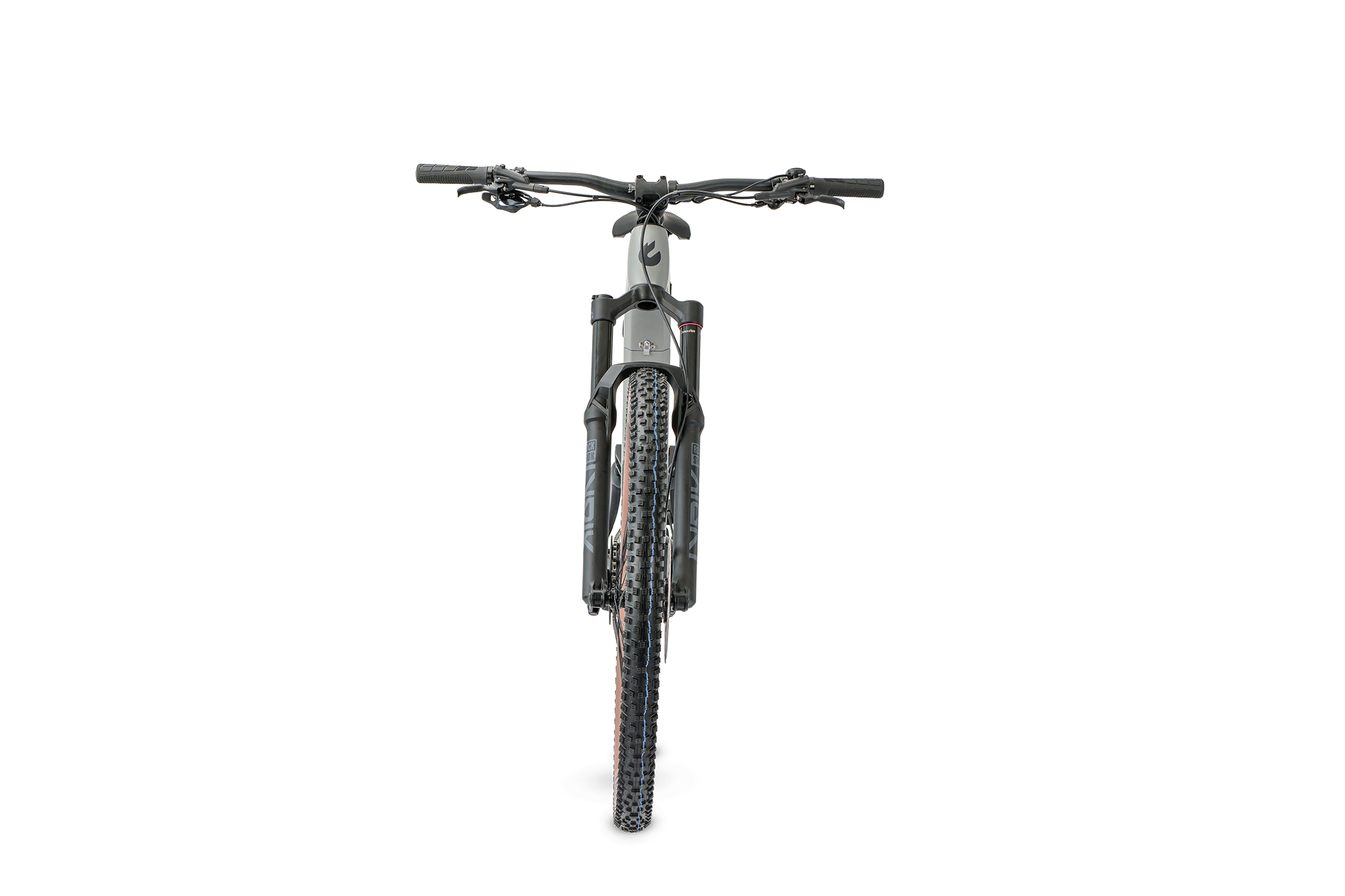

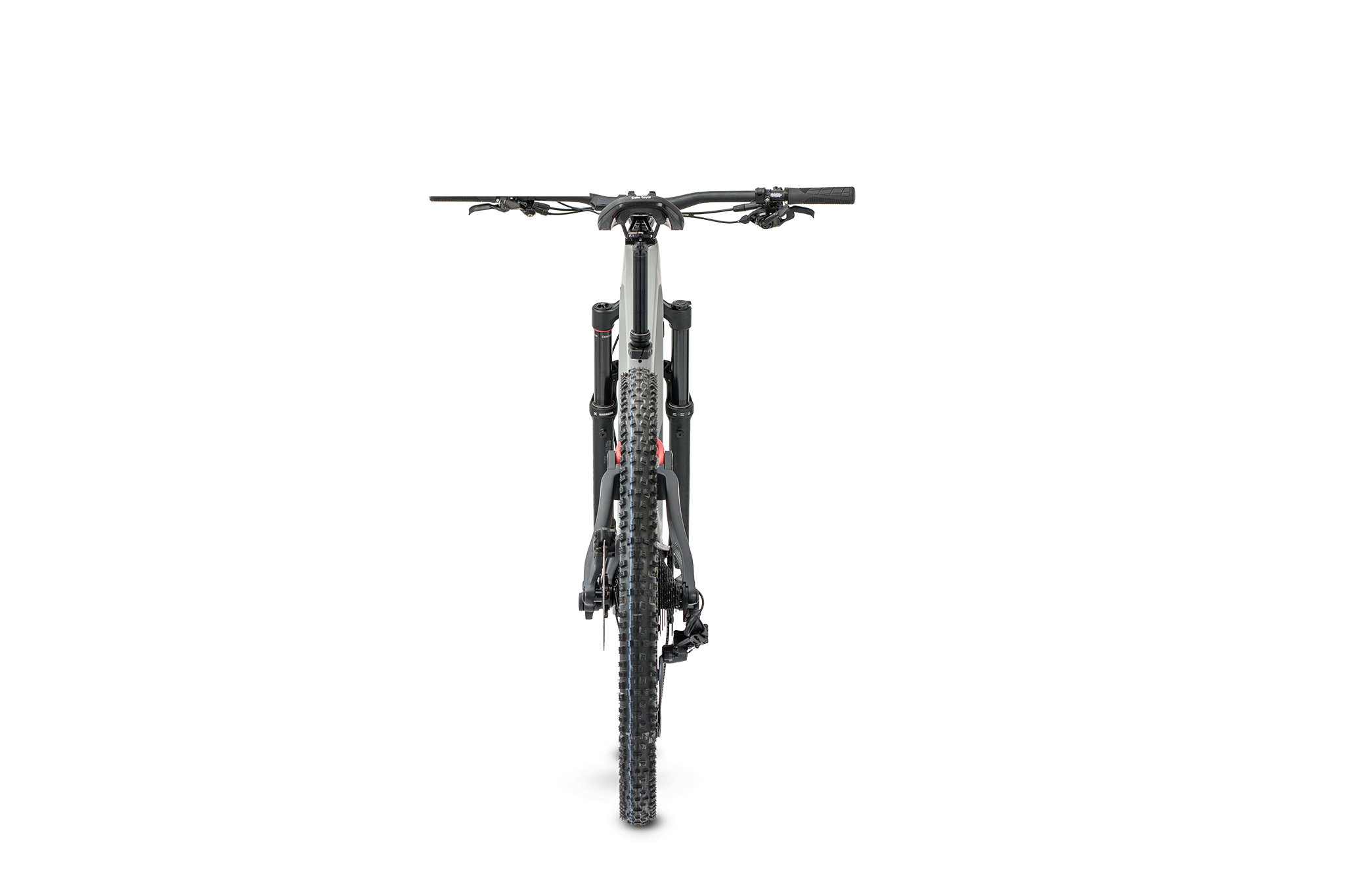

All Mountain 7 Carbon Ultra Hepha E-Bike

All Mountain 7 Carbon Ultra

€5.499,00

The All Mountain 7 Carbon Ultra is the flagship model with the stronger P110 motor, a large 800 Wh battery and a silky-smooth suspension for trails and tours – with the optional SUV kit, the full-suspension e-MTB also becomes a premium everyday bike.

Motor:: HEPHA P110 (110 Nm / 250 W / 25 km/h)
Battery:: HEPHA BT-800BH (800 Wh)

Choose from the following frame size

M L

Product variants

M-44cm

Leasing with one of our partners

Click & Collect at your local dealer

When you order a bike from hepha.com, we'll ship it for free to a dealer of your choice through our Click & Collect service. Once your bike arrives, the dealer will reach out to arrange a pickup time. Enjoy personalized assistance, test rides, and expert advice with this service. Learn more

View details

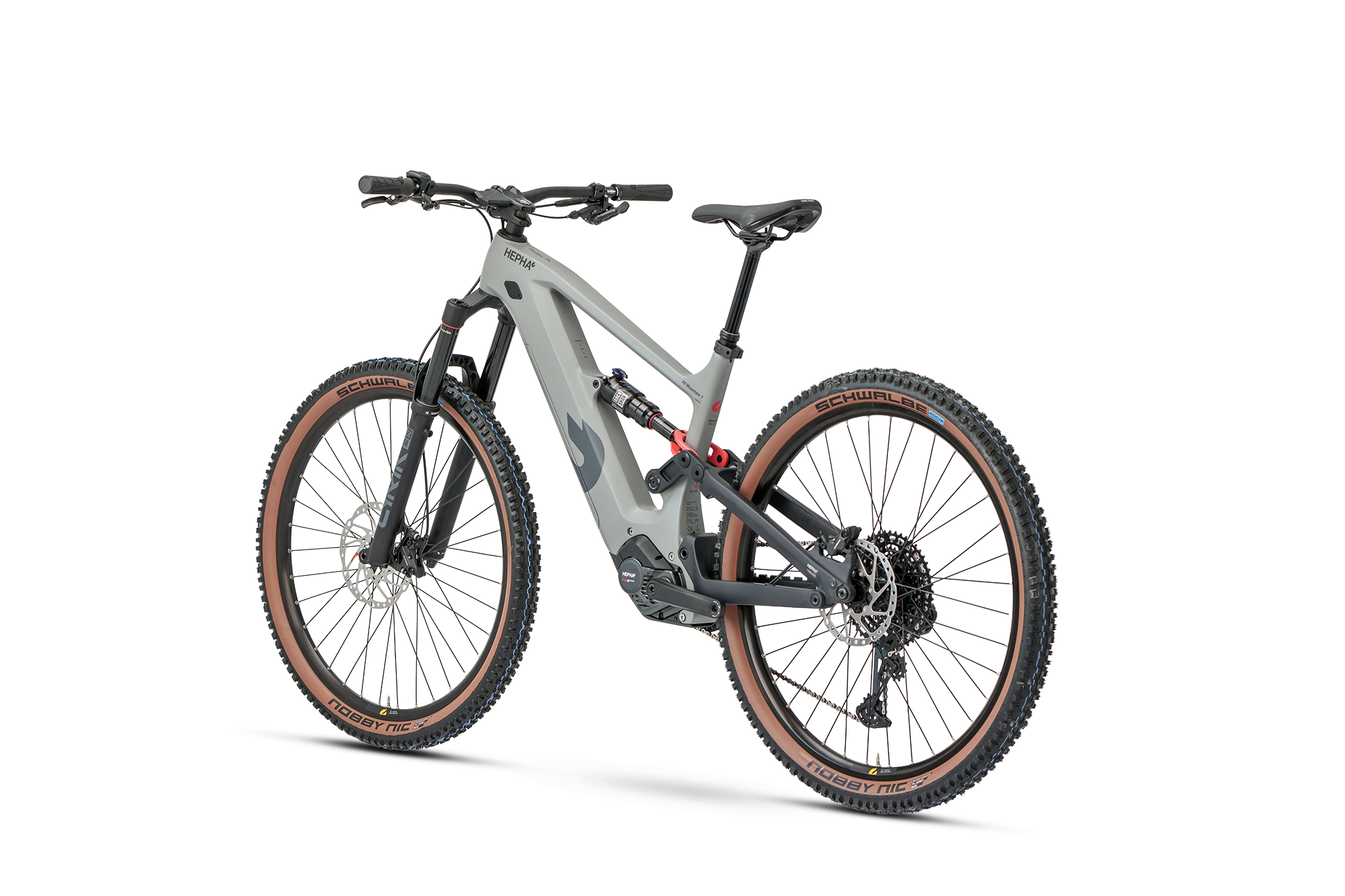

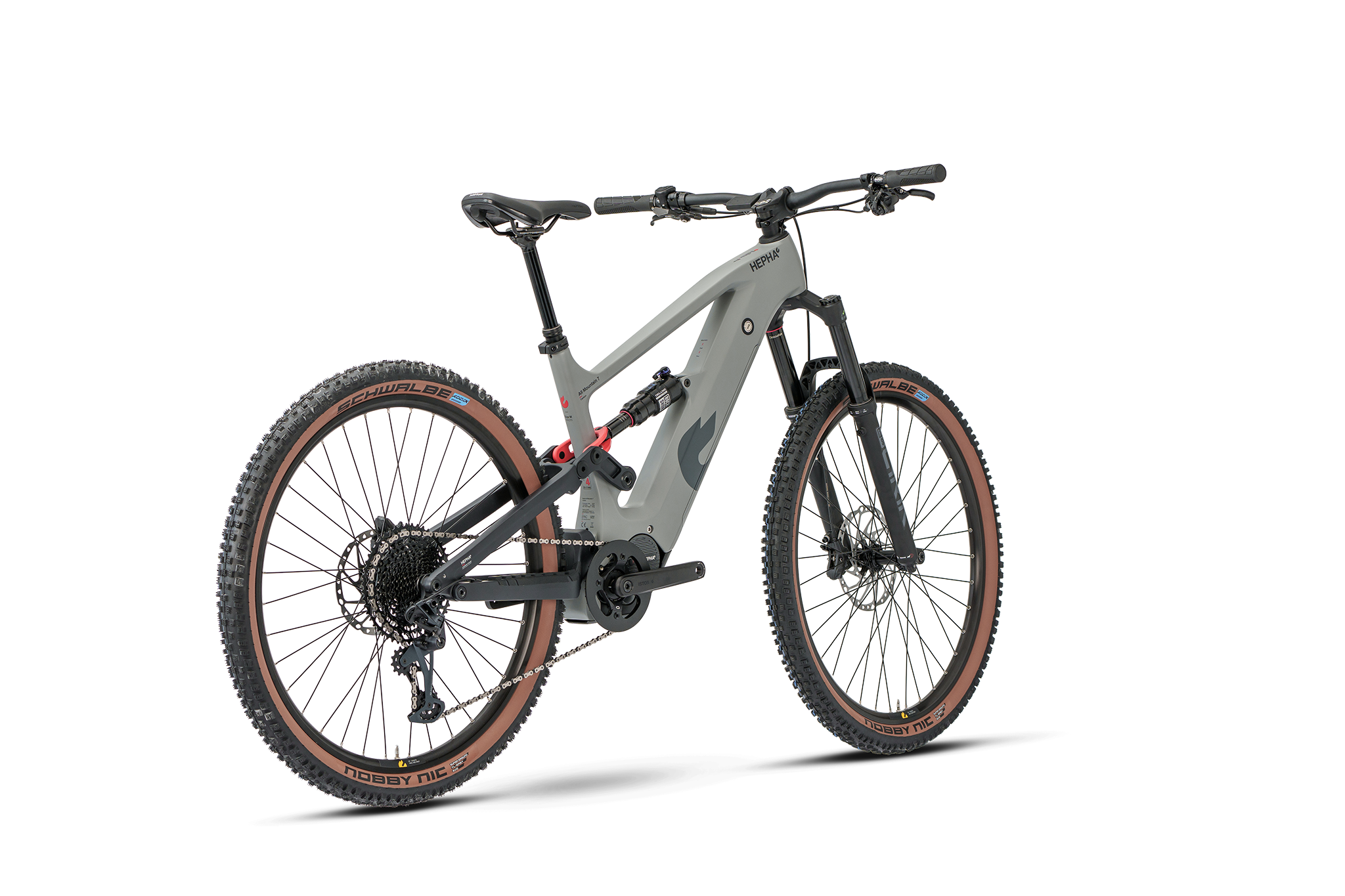

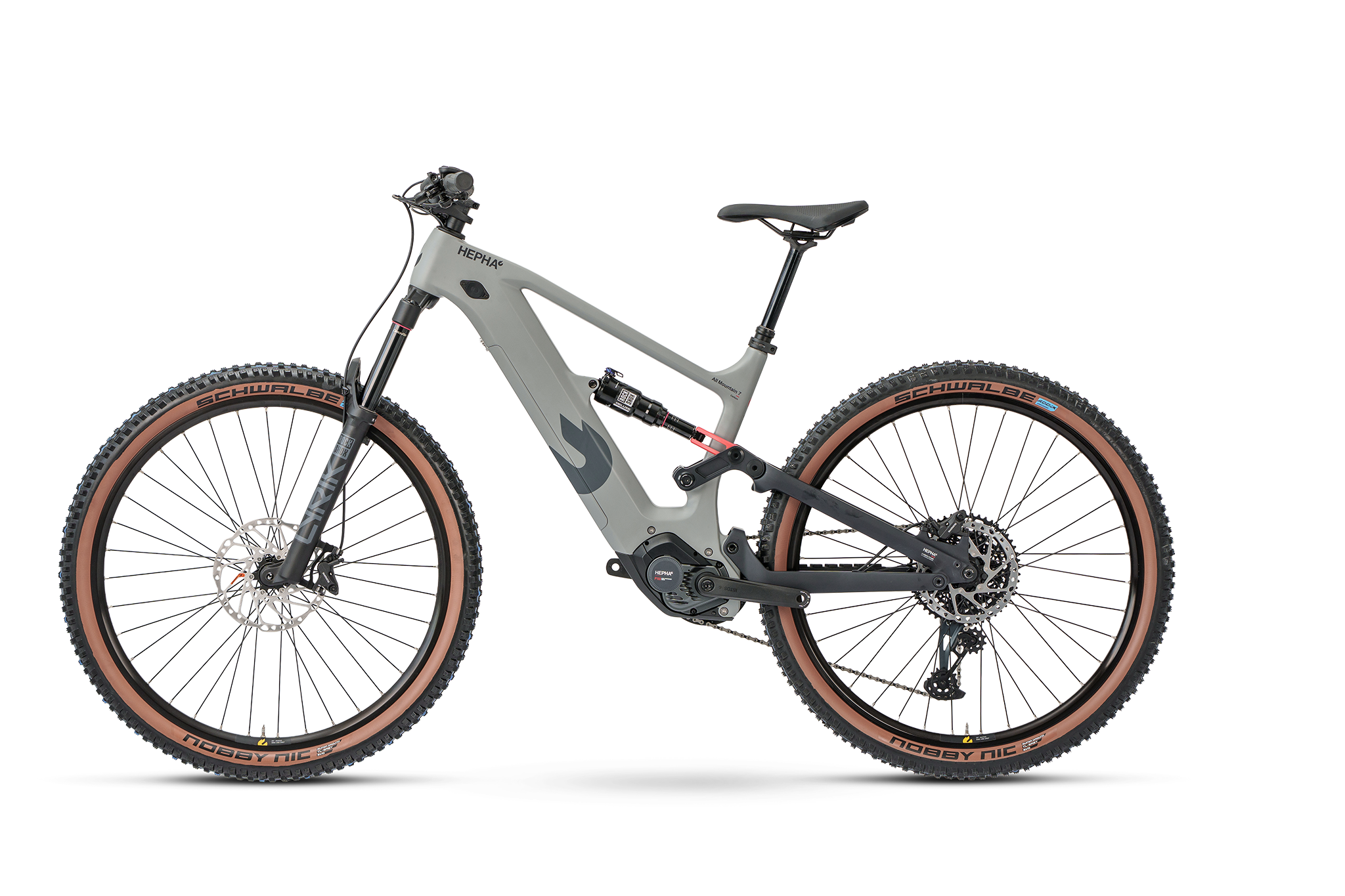

All Mountain 7 Carbon Ultra

M – Change

Everything at maximum

The All Mountain 7 Carbon Ultra is the proven top model in our full-suspension e‑MTB line, built uncompromisingly for maximum power and the best ride characteristics. The new HEPHA P110 motor teams up with the removable 800 Wh battery to set the benchmark for efficiency and range. No matter how steep the mountain or how long the climb – it will get you to the top. And the newly developed suspension delivers the grin on the way down, keeping you in control on trails and comfortable on long tours.

HEPHA P110 drive with 110 Nm
HEPHA 800 Wh battery
RockShox Lyrik Base RC 150 mm fork
Shimano Deore (M6120) 4-piston brakes
SRAM GX Eagle 12-speed shifting
Schwalbe Nobby Nic tires
HEPHA 6A fast charger
SUV kit ready

Fun Machine.

Since its launch, the All Mountain 7 Carbon Ultra has stood for maximum off-road performance. With the new HEPHA P110 motor and the removable 800 Wh battery, the winning formula remains the same: tremendous drive paired with impressive range. A standout highlight is the new suspension, developed together with rear-end specialists at RAAW, which noticeably improves trail and touring performance. Proven premium components – from the drivetrain to the brake rotors – round out this sporty touring e-bike and guarantee maximum fun on the trails. New to the carbon version are all mounting points for the SUV kit, so the Ultra can now be upgraded into a premium everyday bike. Available in two frame sizes in the timeless color Grey.

Highlights

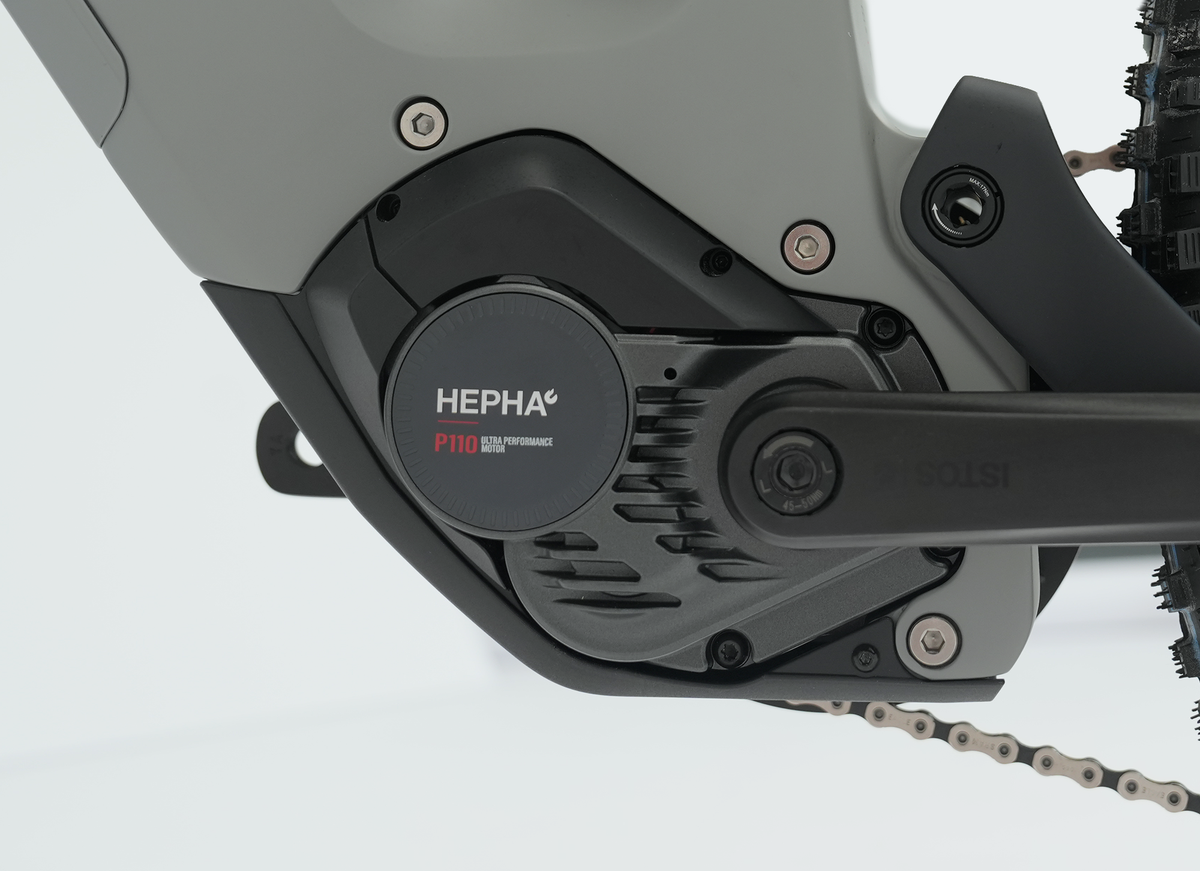

NEW! HEPHA P110 motor – more power

The new HEPHA P110 delivers noticeably more power with 110 Nm, giving you real reserves for steep climbs and demanding terrain. Optimized sensors respond faster and, despite the extra output, ensure a natural, controlled riding feel.

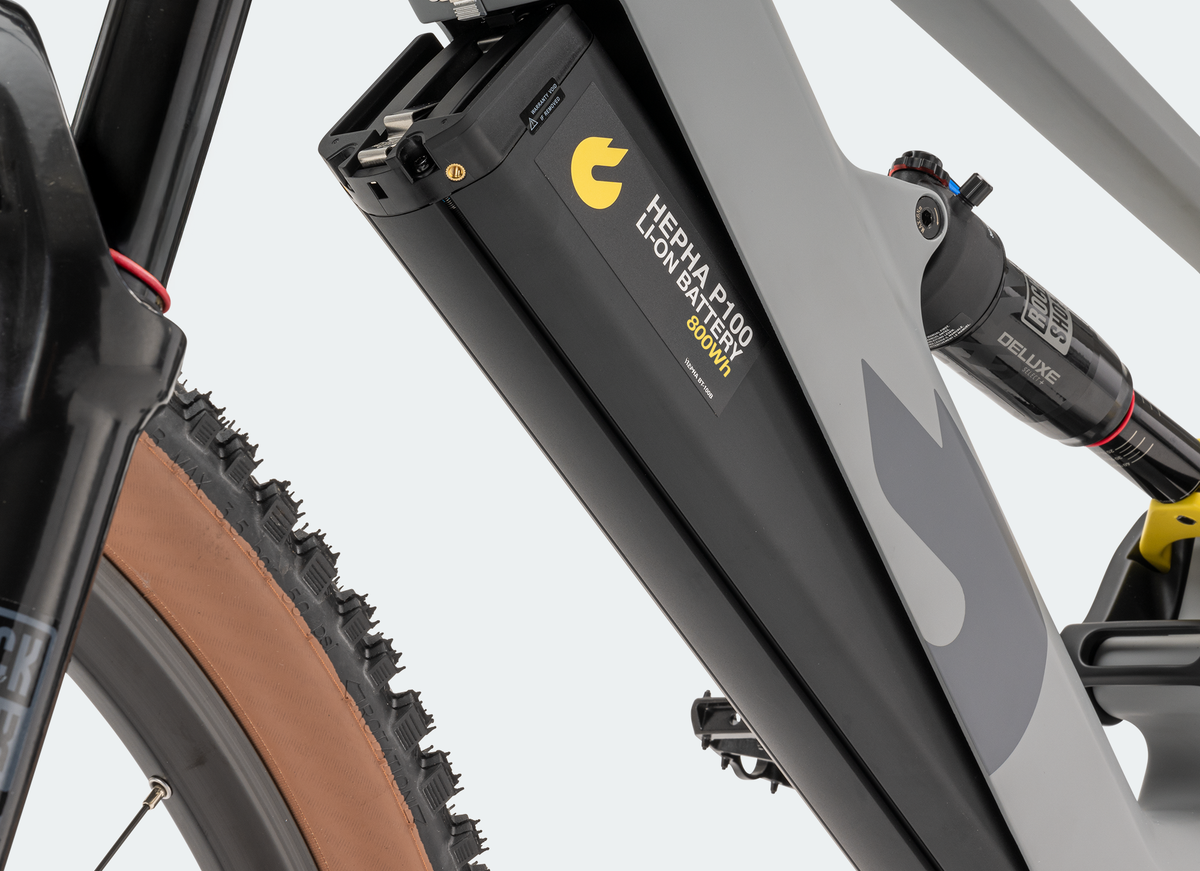

HEPHA 800 Wh battery – extra capacity

With 800 Wh, the battery offers noticeably more reserve. It’s cleanly integrated into the frame, easy to remove, and delivers plenty of energy thanks to its high energy density. Combined with the efficient motor, you enjoy more distance, more elevation, and more freedom.

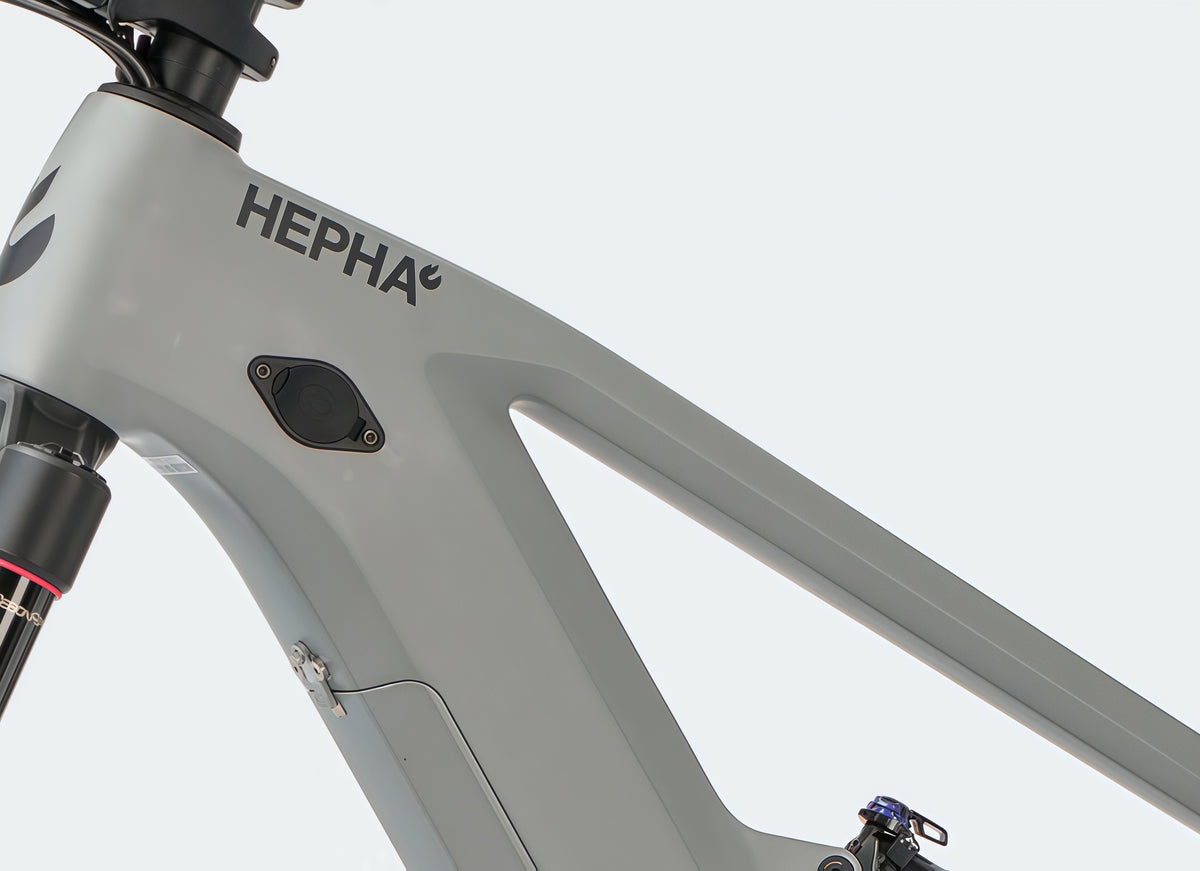

HEPHA carbon frame – lightweight & extremely robust

The carbon frame of the All Mountain 7 features both the main frame and rear triangle made from carbon fiber. Despite its low weight, this ensures an extremely robust frame that is approved for a total weight of up to 150 kg.

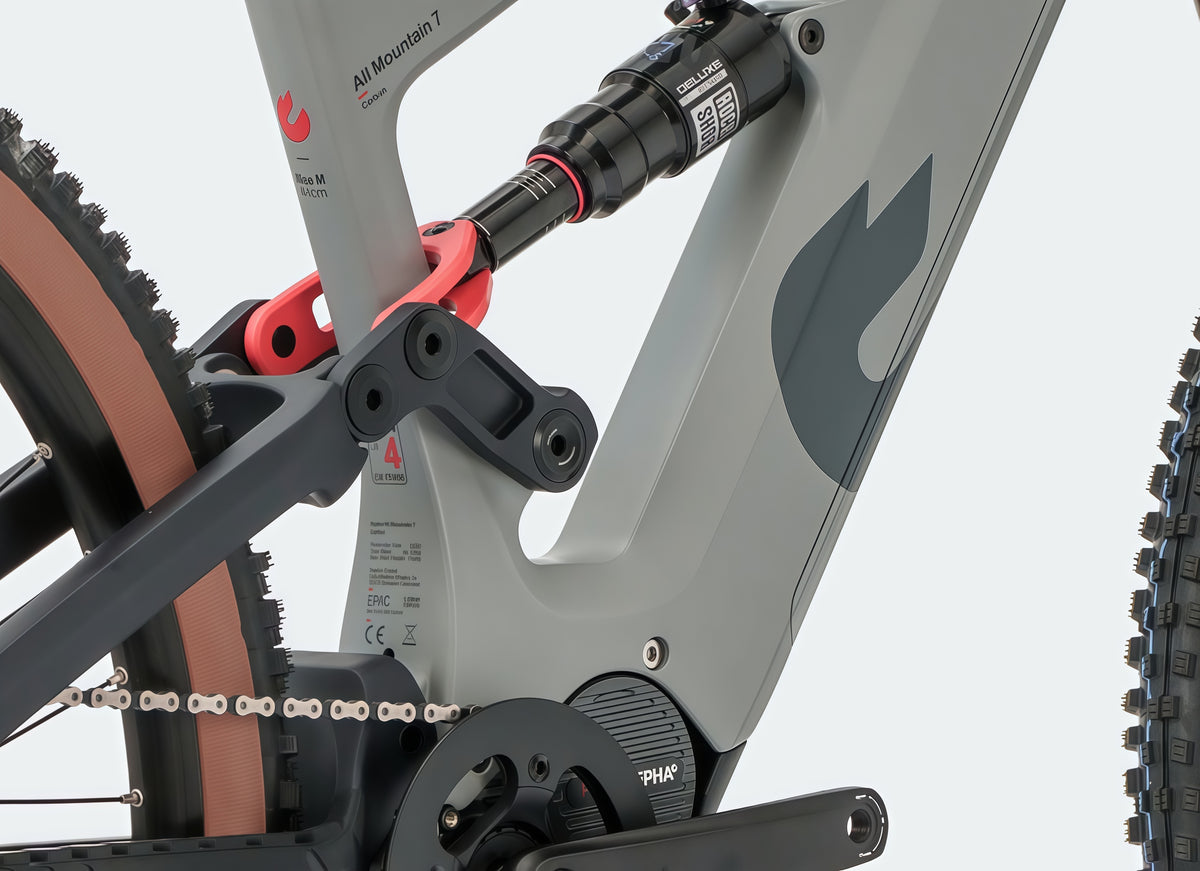

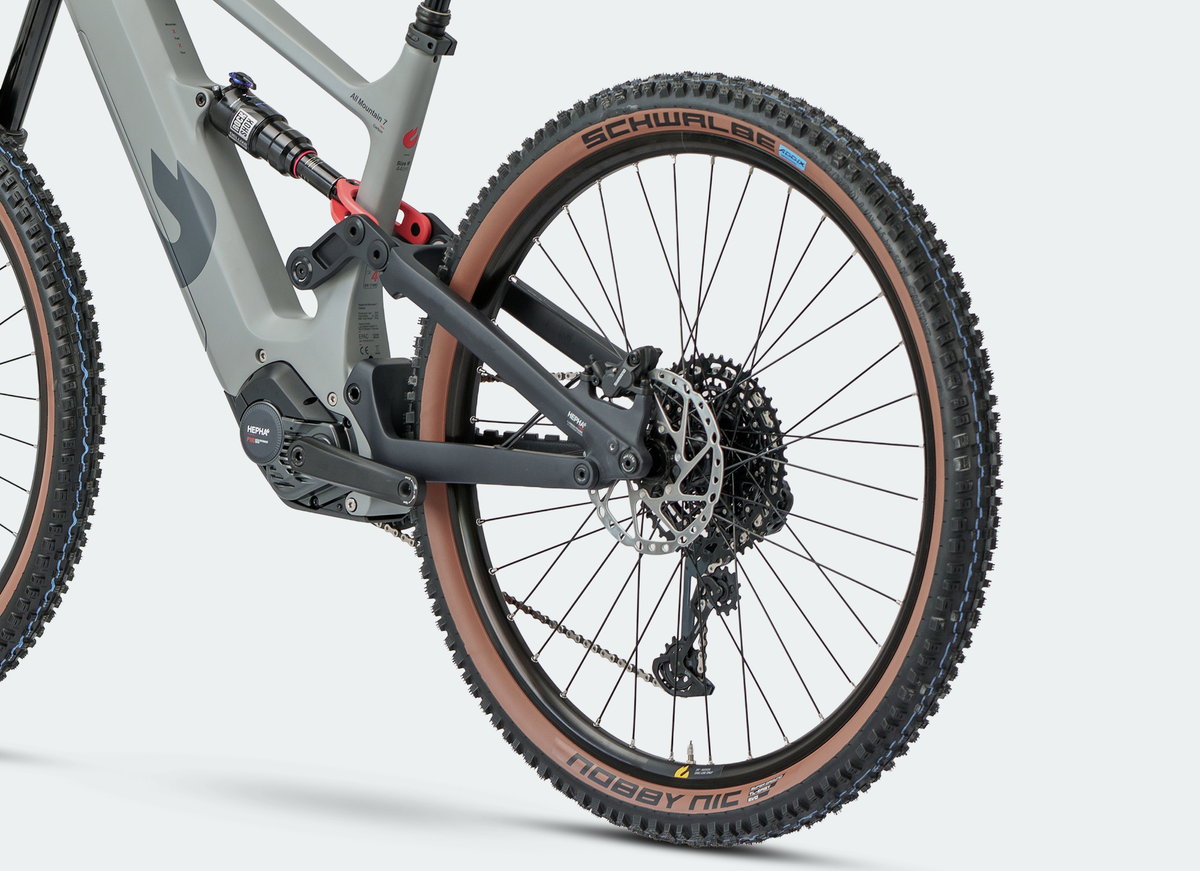

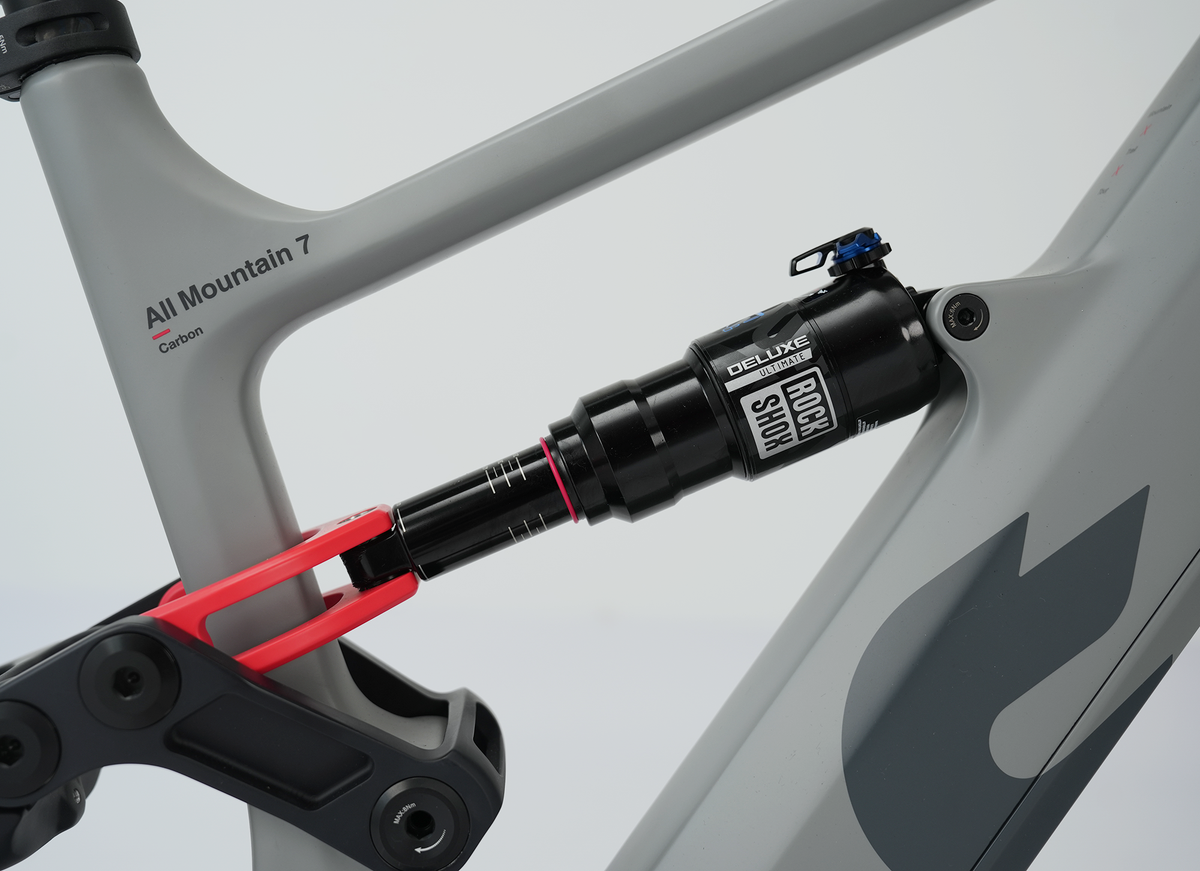

Sensitive yet robust: 140 mm Virtual Pivot suspension

The suspension with 140 mm of travel uses a virtual pivot system for controlled rear-end movement. Developed in collaboration with RAAW, it is designed to be particularly robust for demanding trails and tours.

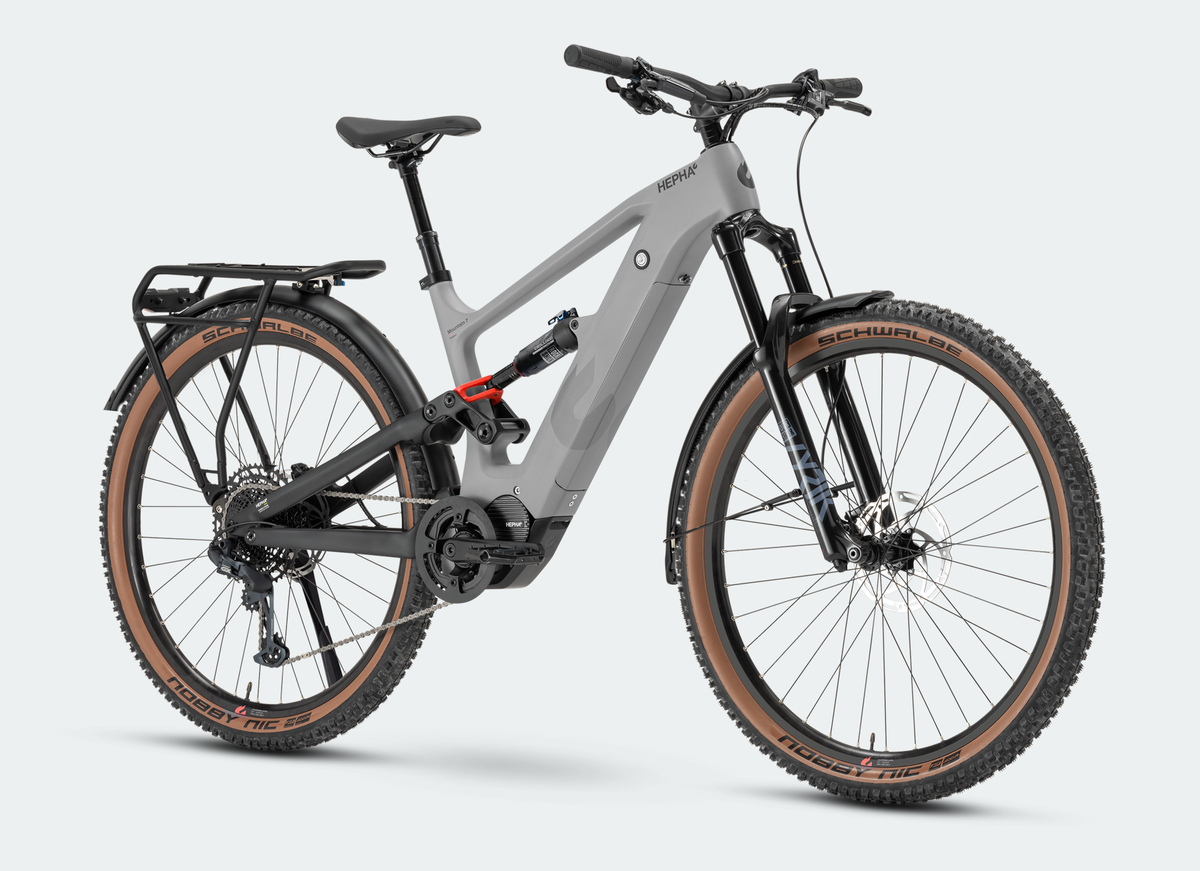

SUV Ready – prepared for retrofitting

With the optional SUV kit, the Ultra becomes suitable for everyday use. All mounting points for a rear rack, fenders, and kickstand are already integrated, as are the cable routings for a fixed lighting system. The SUV kit is available in the HEPHA accessories collection.

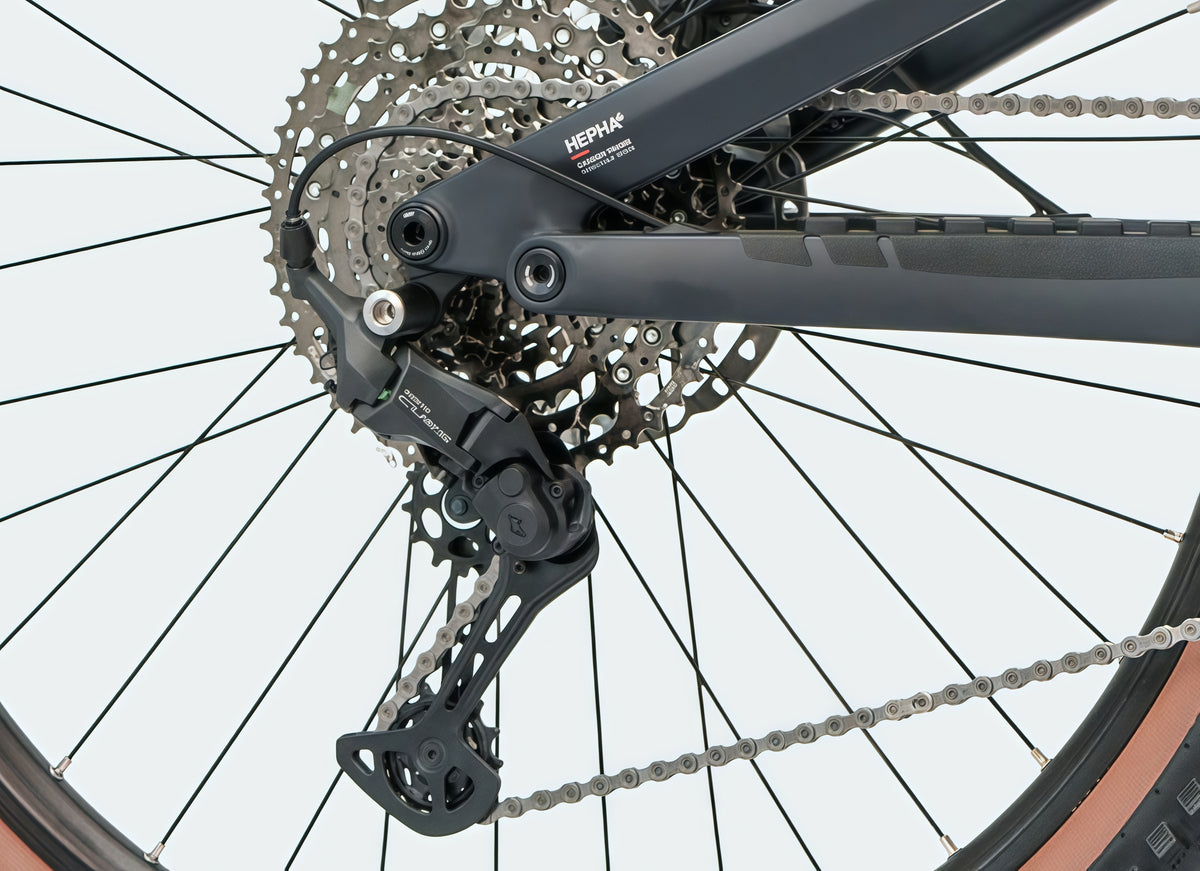

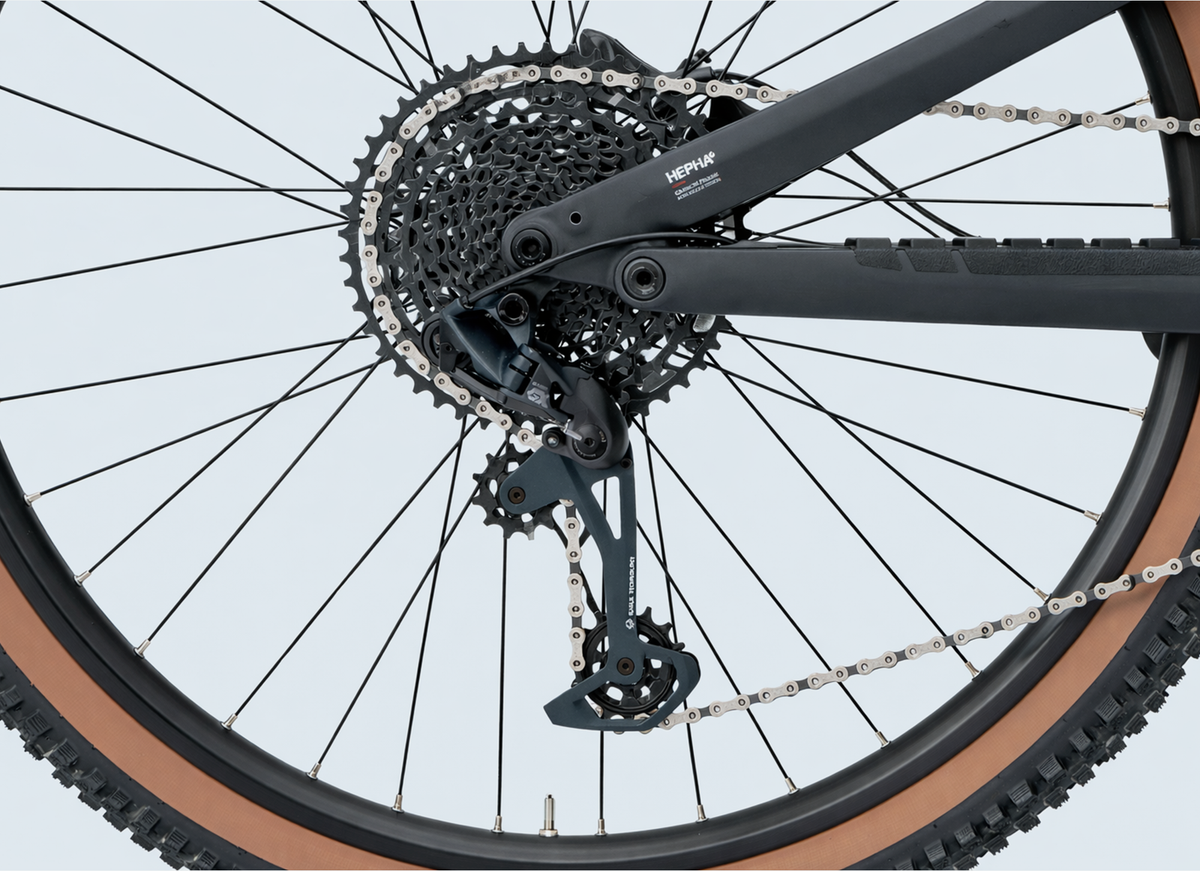

SRAM GX Eagle 12‑speed – wide range for trails

With a huge gear range of 520%, this 12‑speed drivetrain gives you fine steps for steep climbs as well as fast sections. Its robust design stays reliable even under heavy load in tough terrain.

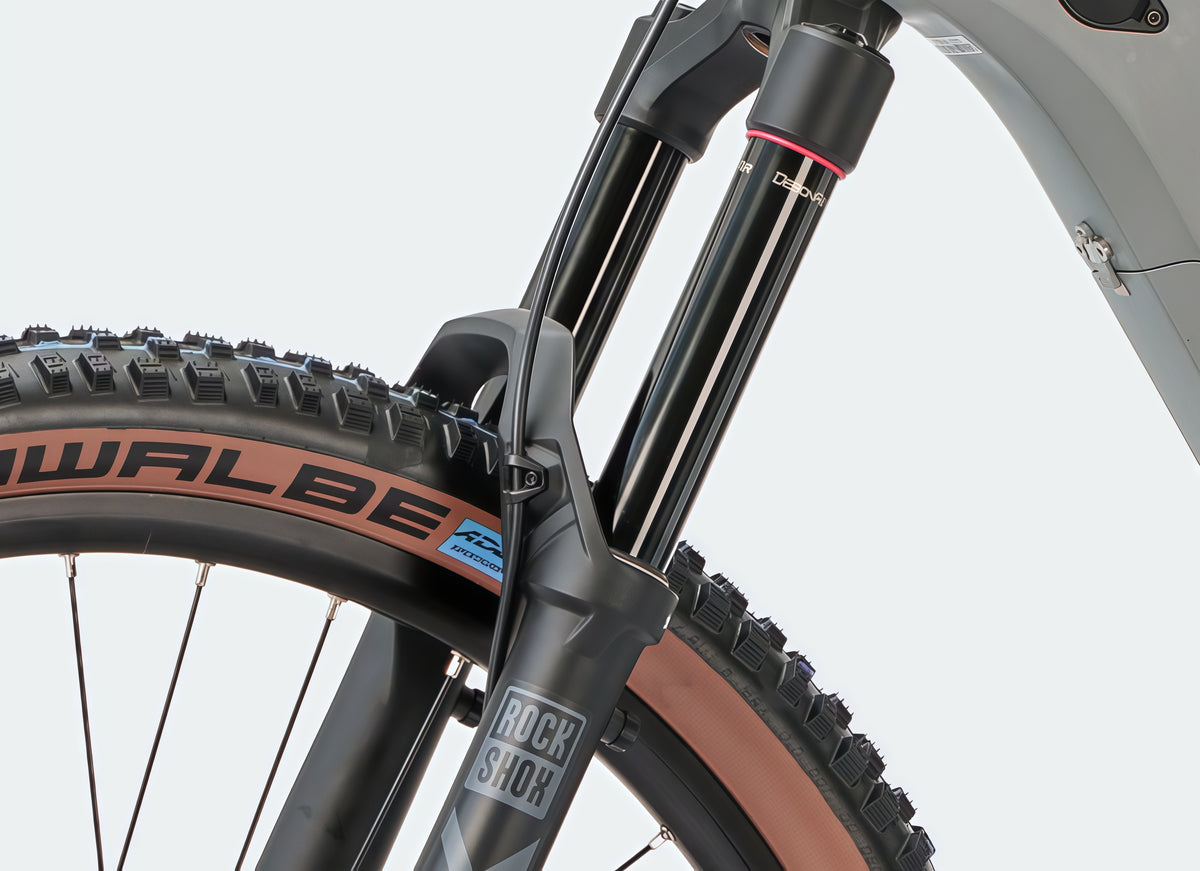

RockShox Lyrik Base RC 150 mm fork

High-end damping for trail riders. 150 mm of travel meets a torsion-stiff 35 mm chassis. The Rush RC damper was developed for trail and touring riding and can be tuned precisely to your style with simple compression and rebound adjustments.

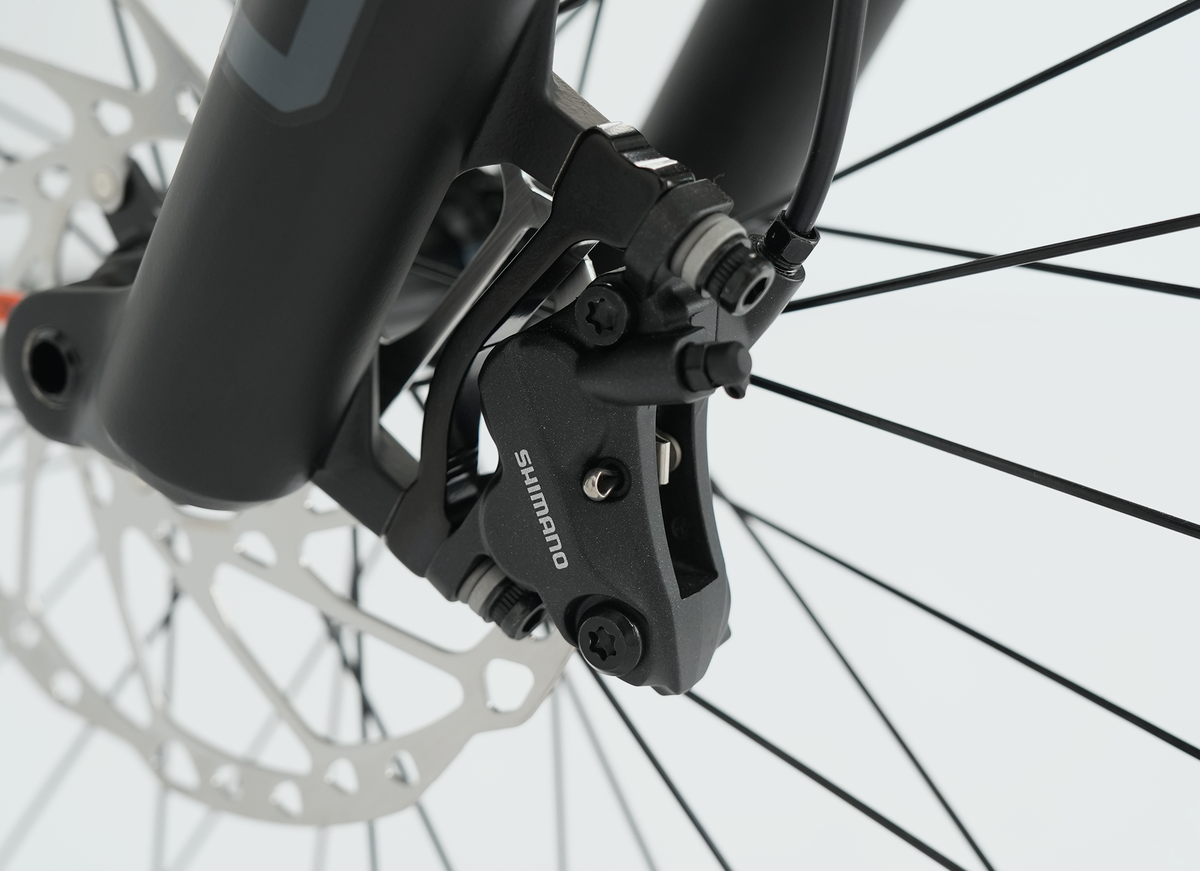

Shimano Deore M6120 – powerful 4‑piston brake

This hydraulic disc brake uses a 4‑piston caliper designed for high braking power. The larger pad area delivers strong, consistent deceleration and more control on heavy e-bikes and long descents.

6A fast charger – ready sooner

The standard fast charger charges around 1.5× faster than conventional chargers. Robust, lightweight, dust- and water-resistant – perfect for tours and everyday use.

Specification

E-Bike System

Motor

HEPHA P110 (110 Nm / 250 W / 25 km/h)

Battery

HEPHA BT-800BH (800 Wh)

Display

HEPHA SC-201 1.96'' Display

Frame

Frame

Hepha Monocoque Full Carbon Frame, 4-Link Virtual Pivot

Suspension

Fork

Rock Shox Lyrik Base RC

Shock

Rock Shox Deluxe Ultimate RCT 210X55

Shifting

Derailleur

SRAM / RD-GX-1-B2 / 12-Speed

Shifters

SRAM / SL-GX-1-A2 / 12S

Cassette / Sprocket

SRAM / CS-PG-1230-A1 / 11-50T

Chain ring

Alloy BCD104, 36T,CL=50MM

Brakes

Brake (f / r)

Shimano CUES, BR-M6120

Brake disc (f / r)

203/180 mm

Brake levers

Shimano, BL-M6100

Wheels

Tires

Schwalbe / Nobby Nic / 29” x 2.4”

Rims

ISTOS Rim, 29", Alloy Sport, 622x25, 36 hole

Hub (f/r)

KT-T50F / KT-DCR1S5EN

Steering & Seating

Handlebar

ISTOS Handlebar, Sport, 31,8mm, 780mm, ErgoAdjust

Grips

ISTOS Grips Sport, 135mm

Stem

ISTOS Stem, 50mm, 31,8mm, ErgoAdjust

Seat post

ISTOS Dropper Post, Travel: 150mm, 31,6mm

Saddle

ISTOS Saddle, Sport, 145mm

Weight & Class

Category

Frame & Geometry

Frame Size

Geometry

No.	Measurement	M	L
A	Frame Height	440 mm	480 mm
B	Seat Tube Angle	68.5°	68.5°
C	Fork Offset	44 mm	44 mm
D	Seat Angle	74°	74°
E	Head Tube Length	110 mm	124 mm
F	Head Tube Angle	66°	66°
G	Top Tube Horizontal	632 mm	655 mm
H	Chain Stay Length	458 mm	458 mm
I	Bottom Bracket Drop	20 mm	20 mm
J	Wheelbase	1,225 mm	1,249 mm
K	Stack	617 mm	629 mm
L	Reach	455 mm	473 mm
M	Standover Height	773 mm	806 mm
	Seat Height Min	555 mm	595 mm
	Seat Height Max	820 mm	860 mm

The e-bikes illustrated may differ in individual details from the standard model and may show special equipment at an extra charge. All information on the scope of delivery, appearance, performance, dimensions and weights of the bikes is non-binding and subject to component availability, errors, printing, typesetting and typing errors; we reserve the right to make changes at any time. No rights can be derived from incorrect information. Please note that model specifications may vary from country to country; for more information, please contact your authorized dealer. *All prices are recommended retail prices including the applicable statutory VAT.
