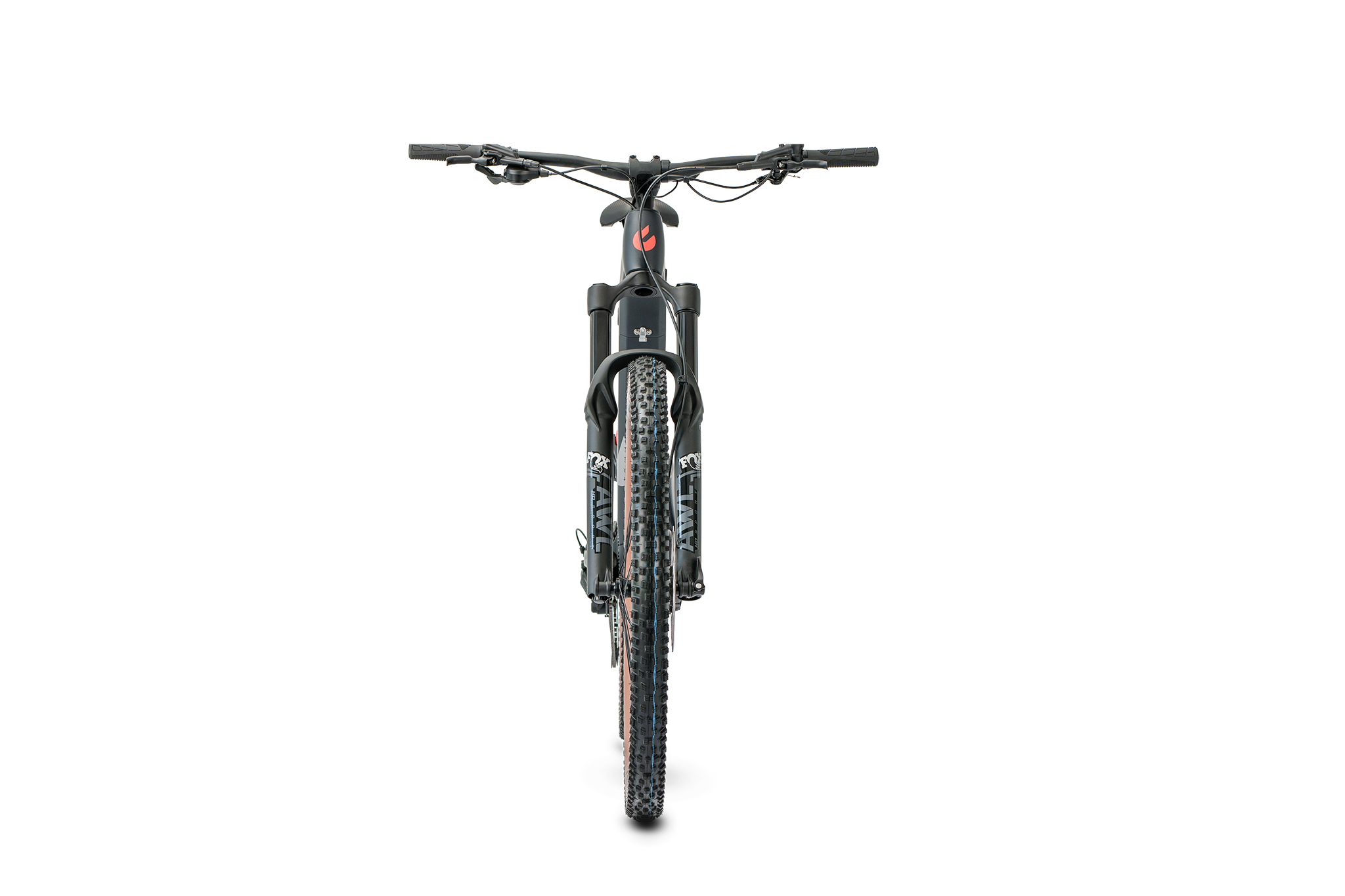

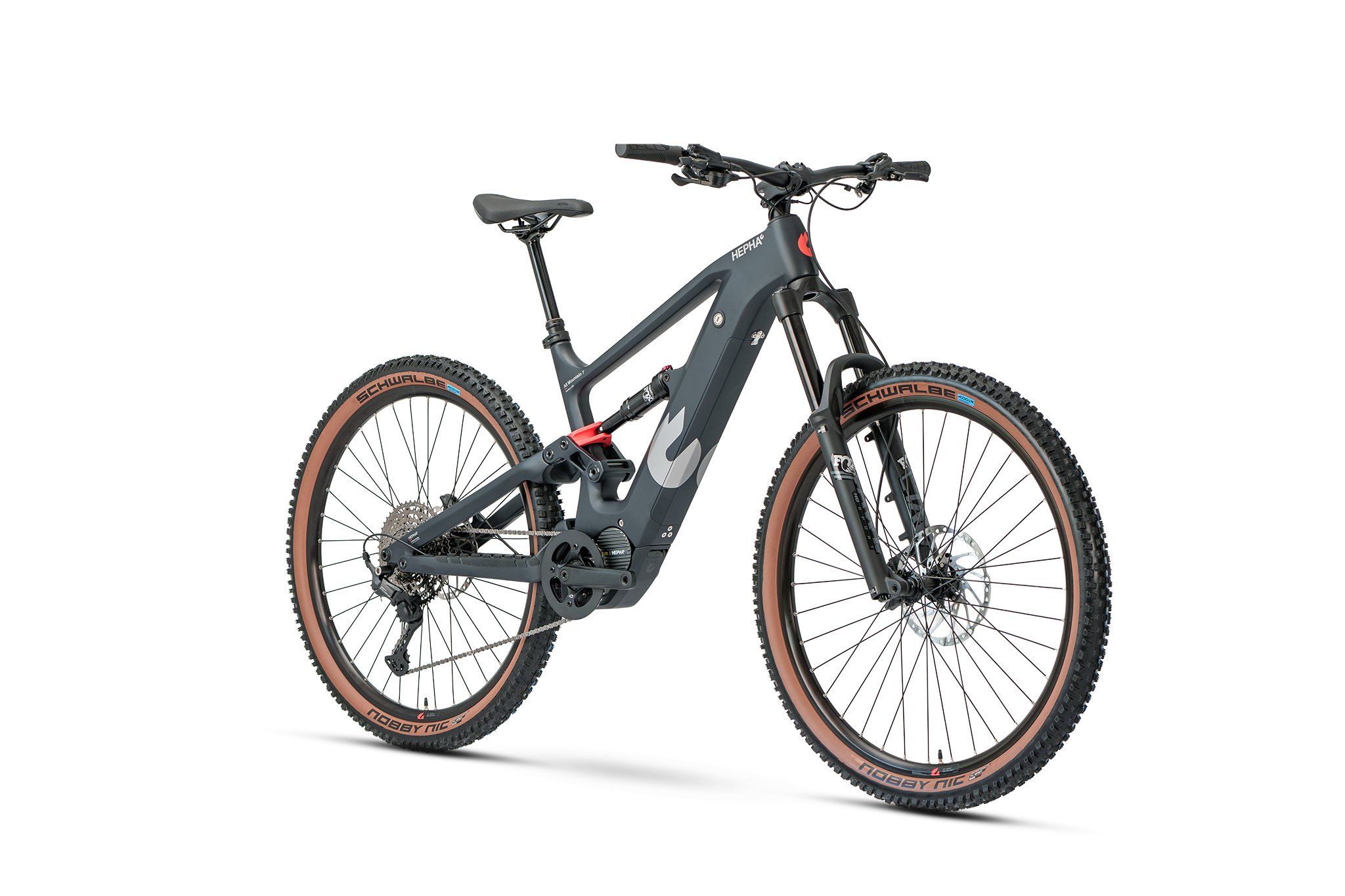

All Mountain 7 Carbon Limited HEPHA E-Bike

All Mountain 7 Carbon Limited

€4.999,00

The limited version of the full-suspension E-MTB combines a light full-carbon frame with a strong 100 Nm drive, a large 800 Wh battery and a comfortable Fox suspension setup. This exclusive color variant is available for a short time only – so act fast!

Motor:: HEPHA P101C (100 Nm / 250 W / 25 km/h)
Battery:: HEPHA BT-800BH (800 Wh)

Choose from the following frame size

M L

Product variants

M (44 cm)

Leasing with one of our partners

Click & Collect at your local dealer

When you order a bike from hepha.com, we'll ship it for free to a dealer of your choice through our Click & Collect service. Once your bike arrives, the dealer will reach out to arrange a pickup time. Enjoy personalized assistance, test rides, and expert advice with this service. Learn more

View details

All Mountain 7 Carbon Limited

M – Change

Carbon Class Ticket

The All Mountain 7 Carbon LTD marks the entry into the carbon world of the HEPHA All Mountain e‑MTBs. At the same time, it delivers an exceptional amount for the money. The lightweight yet robust full‑carbon frame is equipped with a high‑quality Fox suspension setup including a Fox 36 AWL fork, which delivers comfort and lots of fun on the way down. Combined with powerful brakes, grippy tires, and reliable shifting, you get a well‑rounded package that makes stepping into the carbon class especially attractive for e‑mountain bikers.

HEPHA P101 drive unit with 100 Nm
HEPHA 800 Wh battery
Fox 36 AWL 150mm fork
Shimano Cues 11-speed shifting
Shimano Deore 4-piston brakes
Schwalbe Nobby Nic tires
HEPHA 6A fast charger
SUV kit ready

Hit the trails!

With the All Mountain 7 Carbon LTD, HEPHA offers a limited version of its touring e‑MTB at an outstanding price. The high‑quality full‑carbon frame with balanced geometry lays the foundation, while the Fox suspension delivers smooth control on trails and guarantees excellent comfort on tours. Together with the 800 Wh battery, the efficient P101 motor provides a solid 100 Nm of support and impresses with long range. The setup is rounded out with reliable components such as the powerful Shimano Deore 4‑piston brakes. Whether motor, components, or suspension — you won’t find any “too good to be true” compromises on the Carbon LTD variant. The only thing below average is the price of this sporty all‑mountain e‑MTB. As with all All Mountain 7 e‑bikes, you can also fit the optional SUV kit to the LTD. The carbon full‑suspension is available in two frame sizes (M and L) in classic black.

Highlights

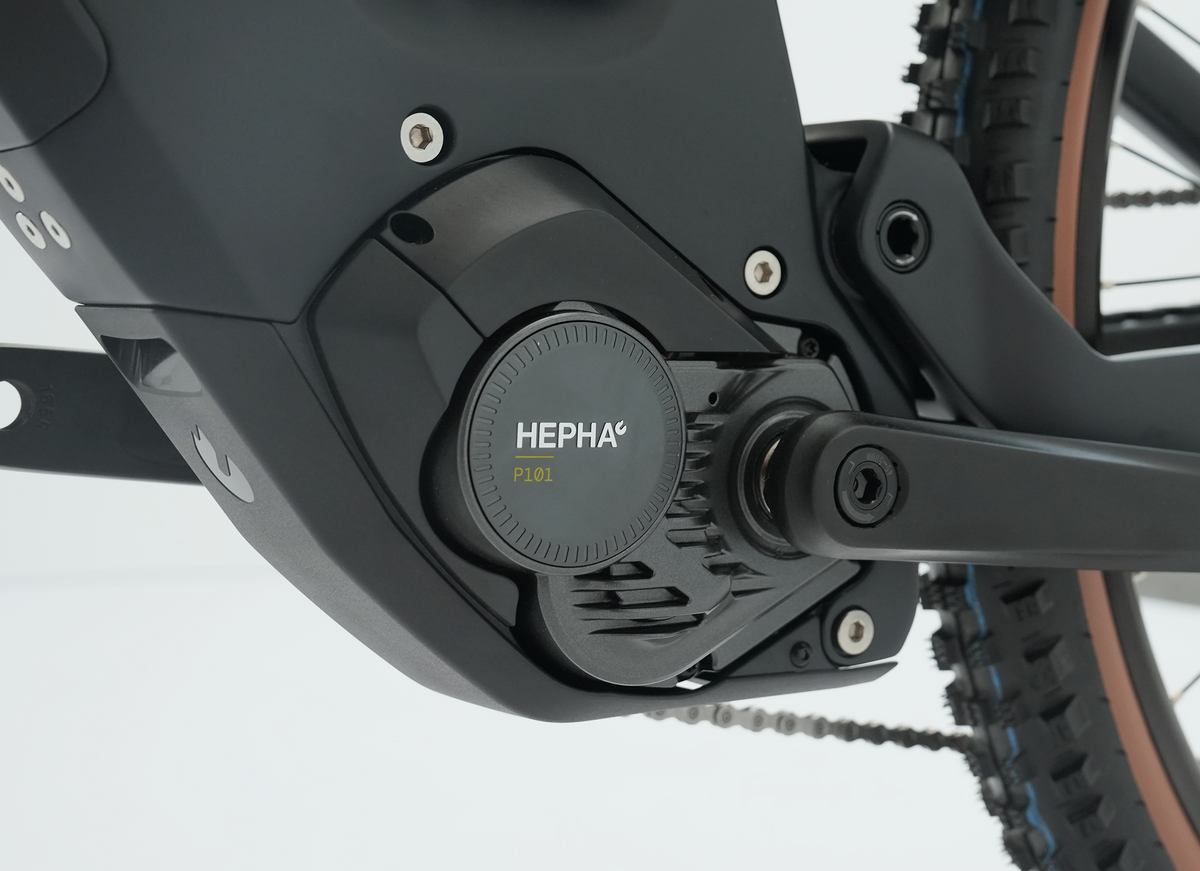

HEPHA P101 Motor - Powerful & Efficient

The HEPHA P101 delivers more than enough reserves with 100 Nm — whether it's steep climbs, heavy loads, or technically demanding trails. The finely tuned sensors ensure a natural, controlled riding experience despite the high power.

HEPHA 800 Wh Battery - Extra Capacity

With 800 Wh, the battery provides noticeably more reserves. Cleanly integrated into the frame, easy to remove, and thanks to high energy density, it delivers plenty. Combined with the efficient motor, you enjoy more distance, more elevation, and more freedom.

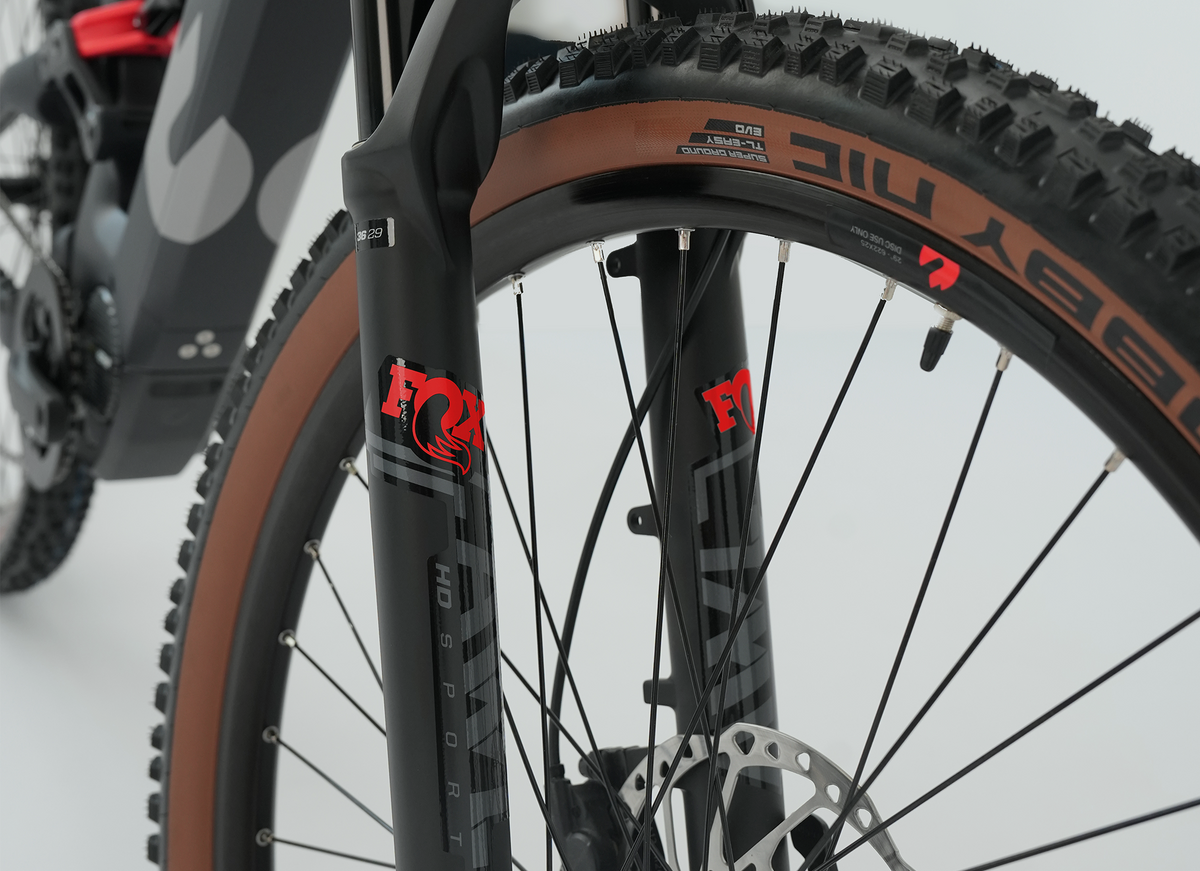

Fox 36 AWL – 150 mm Built for e‑MTB Loads

This fork is designed specifically for e‑mountain bikes and built for continuous loads. 150 mm of travel meets stiff 36 mm stanchions that absorb high forces and keep the front wheel composed even with weight, speed, and long descents.

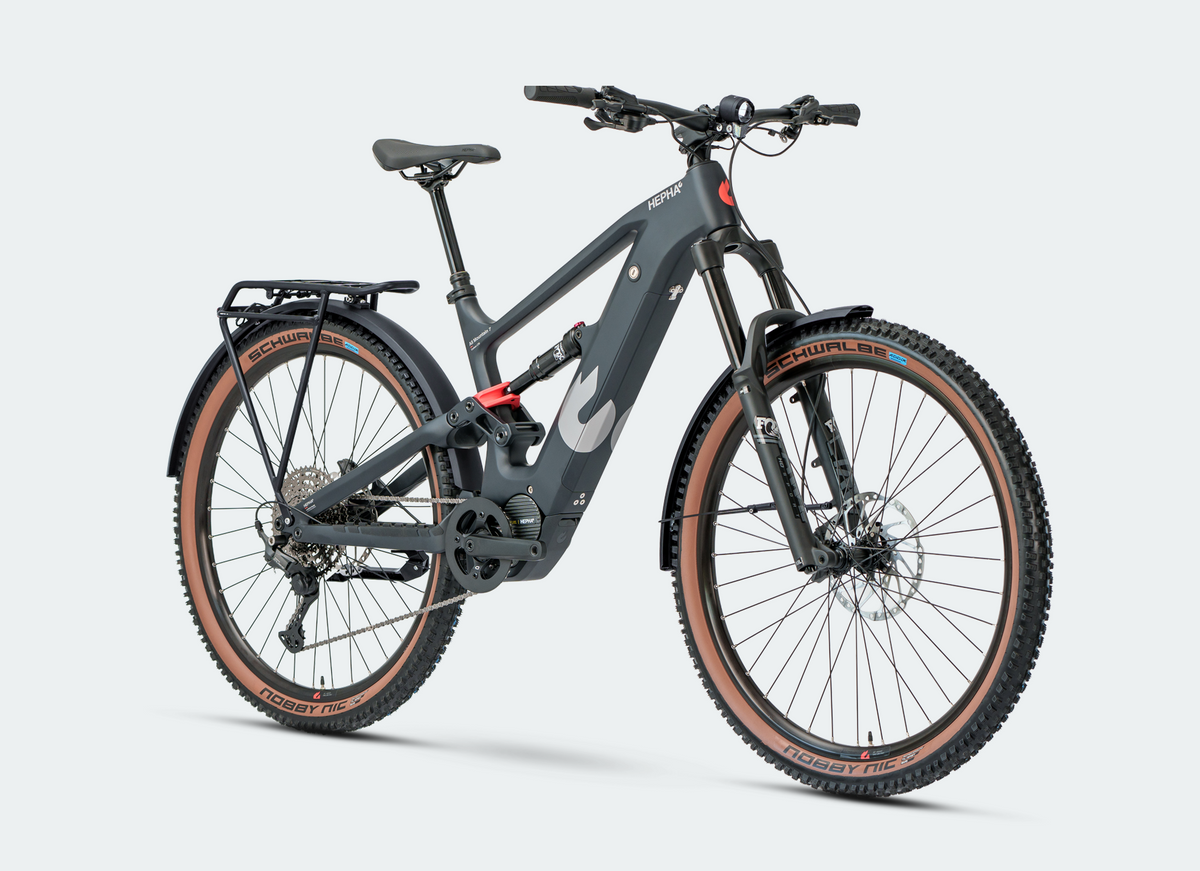

SUV Ready – prepared for retrofitting

With the optional SUV kit, the Ultra becomes suitable for everyday use. All mounting points for a rear rack, fenders, and kickstand are already integrated, as are the cable routings for a fixed lighting system. The SUV kit is available in the HEPHA accessories collection.

Shimano CUES – Robust 11‑Speed Shifting

This 11‑speed drivetrain is designed for high e‑bike loads and uses the especially durable Linkglide system. It enables calm, consistent gear changes and significantly reduces wear, even when shifting frequently under motor support.

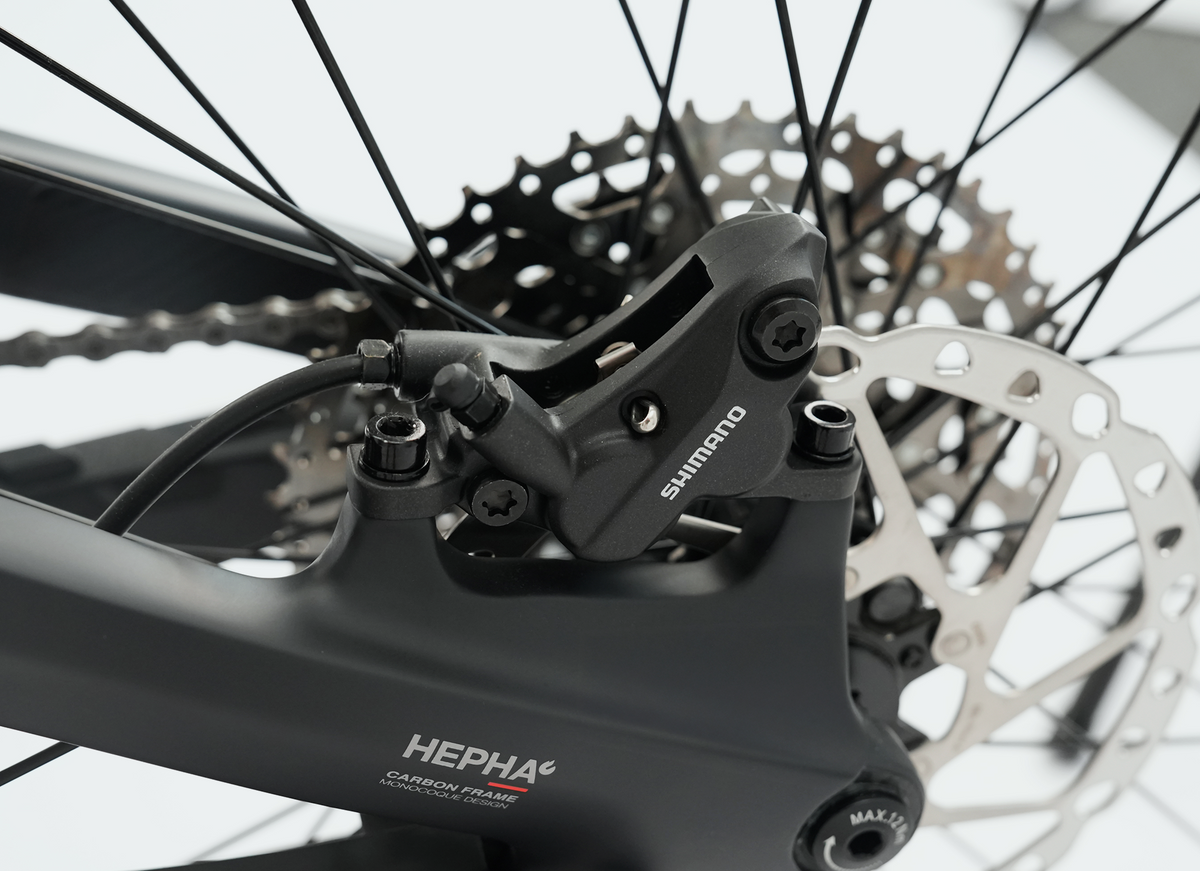

Shimano Deore M6120 - Powerful 4-Piston Brakes

This hydraulic disc brake uses a 4‑piston caliper and is built for high braking forces. The larger pad surface delivers strong, consistent deceleration and more control on heavy e‑bikes and long descents.

6A Fast Charger - Ready to Go Faster

The standard fast charger charges about 1.5× faster than standard chargers. Robust, lightweight, dust‑ and waterproof — perfect for tours and daily use.

Specification

E-Bike System

Motor

HEPHA P101C (100 Nm / 250 W / 25 km/h)

Battery

HEPHA BT-800BH (800 Wh)

Display

HEPHA SC-201 1.96'' Display

Frame

Frame

Hepha Monocoque Full Carbon Frame, 4-Link Virtual Pivot

Suspension

Fork

Fox 36 AWL HD Sport

Shock

Fox Rythm 210x55

Shifting

Derailleur

Shimano / RD-U6000 / CUES / 11-Speed

Shifters

Shimano / SL-U6000-11R / CUES

Cassette / Sprocket

Shimano / CS-LG400-11 / 11-50T

Chain ring

Alloy BCD104, 36T,CL=50MM

Brakes

Brake (f / r)

Shimano BR-M6120

Brake disc (f / r)

203/180 mm

Brake levers

Shimano, BL-M6100

Wheels

Tires

Schwalbe / Nobby Nic / 29” x 2.4”

Rims

ISTOS Rim, 29", Alloy Sport, 622x25, 36 hole

Hub (f/r)

KT-T50F / KT-DCR1S5

Steering & Seating

Handlebar

ISTOS Handlebar, Sport, 31,8mm, 780mm, ErgoAdjust

Grips

ISTOS Grips Sport, 135mm

Stem

ISTOS Stem, 50mm, 31,8mm, ErgoAdjust

Seat post

ISTOS Dropper Post, Travel: 150mm, 31,6mm

Saddle

ISTOS Saddle, Sport, 145mm

Weight & Class

Category

Frame & Geometry

Frame Size

Geometry

No.	Measurement	M	L
A	Frame Height	440 mm	480 mm
B	Seat Tube Angle	74°	74°
C	Fork Offset	44 mm	44 mm
D	Seat Angle	68.5°	68.5°
E	Head Tube Length	110 mm	124 mm
F	Head Tube Angle	66°	66°
G	Top Tube Horizontal	632 mm	655 mm
H	Chain Stay Length	458 mm	458 mm
I	Bottom Bracket Drop	20 mm	20 mm
J	Wheelbase	1,225 mm	1,249 mm
K	Stack	617 mm	629 mm
L	Reach	455 mm	473 mm
M	Standover Height	773 mm	806 mm
	Seat Height Min	555 mm	595 mm
	Seat Height Max	820 mm	860 mm
